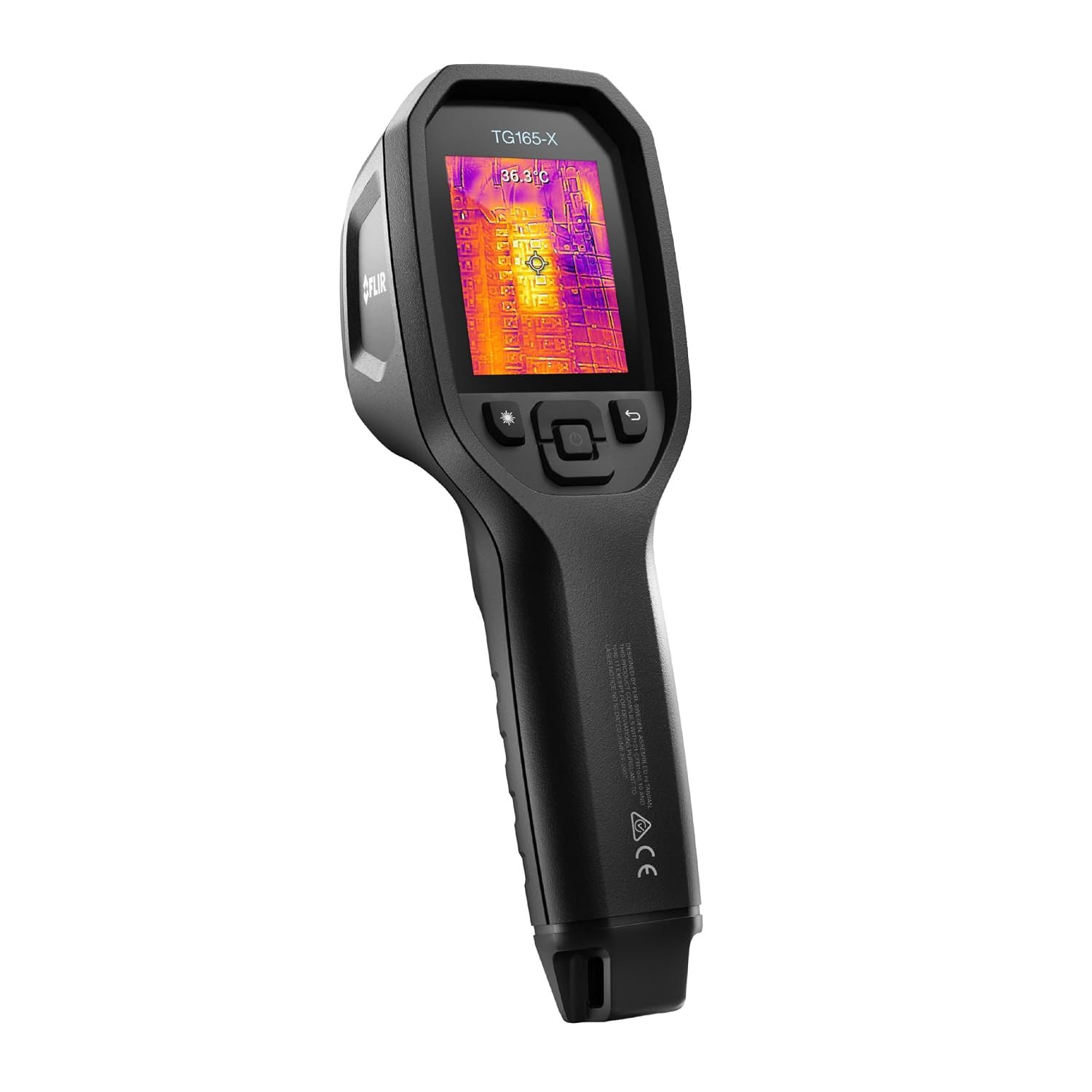

FLIR TG165-X Thermal Imaging Camera
As an Amazon Associate I earn from qualifying purchases.
Finding an electrical or heating fault is often easier when you can see where temperatures differ rather than relying entirely on individual measurements. The FLIR TG165-X Thermal Imaging Camera provides a visual picture of surface temperature differences, helping tradespeople identify areas that deserve closer investigation.
Designed for electrical, mechanical and building inspections, it combines thermal imaging with FLIR’s MSX image enhancement technology in a compact, pistol-grip instrument.
For electricians, heating engineers and maintenance professionals, its appeal is straightforward: it can reveal unusual heating or cooling patterns before you decide where more detailed testing is needed.
Why it works for electrical and heating inspections
The FLIR TG165-X uses an 80 × 60 thermal sensor to display temperature differences across a surface. Unlike a conventional infrared thermometer, which provides a measurement from a selected area, this camera presents a thermal image that helps reveal patterns.
FLIR’s MSX technology adds visible-light outlines to thermal images, making components, edges and surrounding details easier to recognise. This is particularly useful when examining electrical equipment, pipework and heating installations.
The camera measures surface temperatures from -25°C to 300°C and includes a laser targeting system to help identify the measurement area.
In electrical work, it can help highlight connections, components or equipment operating at noticeably different temperatures from similar surrounding parts.
For plumbing and heating professionals, it can assist with inspecting radiators, identifying temperature distribution across accessible pipework and examining heating performance.
A thermal image is an indication rather than a diagnosis, but it can provide a valuable starting point.
What it feels like to use
The TG165-X has a practical pistol-grip design, with a trigger positioned for capturing images during inspections.
At approximately 394 grams, including its battery, it offers a manageable weight for a dedicated handheld thermal camera. Its compact shape should suit carrying between jobs without requiring the larger equipment associated with more advanced imaging systems.
The 2.4-inch colour screen displays thermal information directly on the instrument, removing the need to connect a separate smartphone during routine inspections.
Its integrated LED work light is useful when inspecting poorly illuminated cupboards, plant rooms and service spaces.
The camera also has IP54-rated protection against dust and water ingress, along with a housing designed to withstand drops of up to two metres. These are reassuring specifications for equipment intended to travel between working environments.
A rechargeable lithium-ion battery provides up to five hours of scanning under FLIR’s stated conditions.
Images can be saved to internal storage for later reference, which is useful when documenting suspected faults or comparing conditions before and after maintenance.
Practical fault-finding applications
One of the camera’s most useful roles is helping identify areas that require further investigation.
An electrical connection appearing unusually warm compared with neighbouring connections may justify additional checks. However, proper electrical measurements are still required before drawing conclusions.
For voltage and continuity testing, a dedicated instrument such as the Fluke 117 Electrician’s Multimeter provides functions that thermal imaging cannot replace.
Similarly, when investigating unusual equipment temperatures alongside electrical loading, the Fluke 325 True-RMS Clamp Meter can help provide current measurements.
For heating work, thermal imaging may reveal uneven radiator temperatures, differences between accessible flow and return pipework, or surface cooling patterns that warrant further checks.
Its strongest contribution is helping direct attention to a possible problem without immediately dismantling equipment.
The drawbacks
The most significant limitation of the FLIR TG165-X is its 80 × 60 thermal resolution. Although MSX enhancement improves the appearance of thermal images, it does not increase the underlying thermal detail captured by the sensor.
For general inspections, that resolution can be useful. However, small components, distant targets and closely spaced heat sources may be difficult to distinguish. Professionals who routinely inspect detailed electrical assemblies may benefit from a higher-resolution camera.
Another limitation is the 8.7 Hz image refresh rate. This is adequate for many relatively stationary inspection tasks, but movement will not appear as smooth as it would on a camera with a faster refresh rate. Anyone accustomed to higher-end thermal instruments may notice the difference.
The 2.4-inch display is practical for portability, although it provides limited space for examining fine details. Inspecting saved images on a larger screen may be preferable when preparing detailed maintenance documentation.
There are also important measurement limitations. Thermal cameras detect infrared radiation from surfaces; they do not see through walls or reveal hidden pipes directly. Temperature patterns may suggest where pipework runs or where moisture could be present, but they cannot confirm a concealed leak on their own.
Reflective metal surfaces can also produce misleading readings. Shiny copper pipe, polished fittings and electrical components may reflect surrounding heat, while different surface materials can affect measurement accuracy. Understanding emissivity and surface conditions remains essential.
The TG165-X should therefore be regarded as an investigative aid rather than a substitute for contact temperature measurement, electrical testing or proper system diagnosis.
Its rechargeable battery is another consideration. Although the stated operating time is useful for routine inspections, FLIR specifies approximately six hours for a full charge. For technicians working long shifts or moving between multiple sites, charging arrangements need to be considered.
Finally, this is a specialised professional instrument. Someone who occasionally checks radiator temperatures or looks for draughts may find a conventional infrared thermometer sufficient. The additional imaging capability makes more sense when temperature-related fault finding forms a regular part of the work.
Who it suits best
The FLIR TG165-X is particularly suitable for electricians, heating engineers, HVAC technicians, maintenance professionals and experienced property inspectors who regularly investigate temperature-related problems.
It makes sense for tradespeople who want visual thermal information without carrying a considerably larger and more complex imaging system.
For occasional household temperature checks, its capabilities may be unnecessary. Equally, specialists requiring highly detailed thermal images, advanced analysis or more demanding inspection functions should consider higher-resolution equipment.
For readers working primarily with pipework, radiators and heating installations, our Plumbing & Heating section covers additional professional tools suited to those tasks.
Is it worth a place in the professional toolkit?
The FLIR TG165-X offers a useful balance between thermal imaging capability, portability and straightforward operation.
Its MSX technology, rechargeable battery, internal image storage and protected housing make it a practical option for professionals who regularly investigate electrical and mechanical temperature differences.
The relatively modest thermal resolution means it should not be confused with a high-end diagnostic camera. Nevertheless, it can provide information that a conventional single-point infrared thermometer cannot show.
For tradespeople who understand the limitations of thermal imaging and want a dependable instrument to assist with fault finding, the TG165-X is a sensible addition to a professional toolkit.
